What are the specifications of roll grooving machine? And what is the application?

What are the specifications of roll grooving machine? And what is the application?

Page view

Roll grooving machine as a special tool is used to make a groove on the pipe end then use a mechanical joint to connect two pipes. The working principle of roll grooving machine is that the rotating down roller driven by motor makes the pipe rotate, and the upper roller moves down and presses the pipe by shaking the pump handle, then forms the groove.

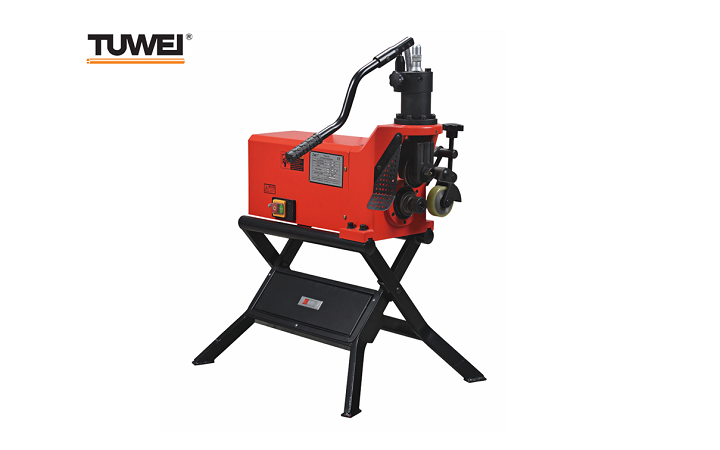

Tuwei roll grooving machine



1.The specifications of roll grooving machine



The specification and configuration of the roll grooving machine is varied with different manufacturers. The following are the specifications of Tuwei brand roll grooving machine.



Models

Capacity

Max. wall thickness

Roll Grooving Machine TWG-IIA

2"-12"(∅60-∅325) steel pipe

10mm

Roll Grooving Machine TWG-IIA-B

2"-12" (∅60-∅325) steel pipe

10mm

Roll Grooving Machine TWG-IIA-P

2"-12"(∅60-∅325) plastic-lining steel pipe

8mm

Roll Grooving Machine TWG-IVA

8"-24"(∅219-∅630) steel pipe

12.7mm

Roll Grooving Machine TWG-IVZ

8"-24"(∅219-∅630) steel pipe

12.7mm

Roll Grooving Machine TWG-VA-R

1"-6"(∅33-∅168)steel pipe

6mm

Roll Grooving Machine TWG-VIA

1"-12"(∅33-∅325) steel pipe

10mm

Roll Grooving Machine TWG-VIIA

1"-12"(∅33-∅325) steel pipe

10mm

Fitting Grooving Machine TWG-15A

2"-12"(∅60-∅325) elbows and T-fitting

6.35mm

Roll Grooving Machine TWG-8A

18"-60"(∅457-∅1524) steel pipe

12.7mm

Roll Grooving Machine TWG-9A

1"-8"(∅33-∅219) steel pipe

8mm

Roll Grooving Machine TWG-10A

2"-12"(∅60-∅325) steel pipe

10mm

Manual grooving Machine TWG-11A

3/4"-8"(∅27-∅219) steel pipe

7mm

Semi-Auto grooving machine TWG-16A

1"-12" (∅33-∅325) steel pipe

8mm



2.The application range of roll grooving machine



Roll grooving machine is suitable for grooving galvanized steel pipe, seamless steel pipe, stainless steel pipe, steel plastic composite pipe and other pipes with different diameters. It is a necessary mechanical equipment for grooved piping connection, and is widely used in fire fighting system, HVAC system, mine system, water supply system and other fields.

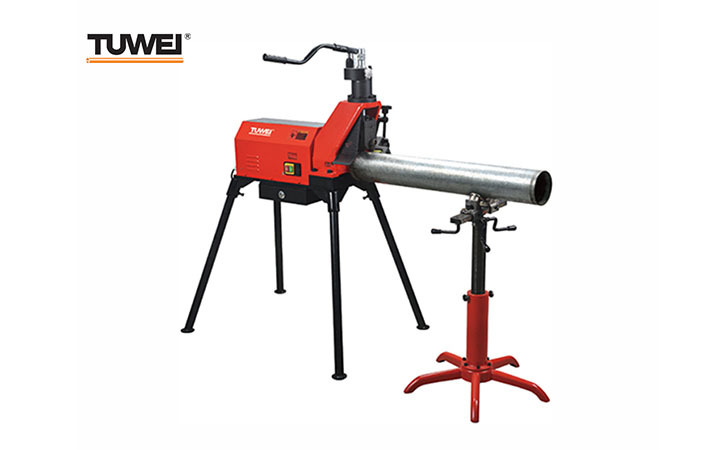

Tuwei roll grooving machine

Roll grooving machine is small, but it plays a great role in many industries and products. Tuwei grooving machine is equipped with advanced hydraulic system and high-performance gear reducer motor. Compared with similar roll grooving machines, it has higher grooving efficiency and more guaranteed quality, it is an ideal equipment for pipe grooving.
