Roll Grooving Machine TWG-10A
TWG-10A automatic roll grooving machine, this innovative machine is capable of 2”-12” steel pipe and plastic-lining steel pipe groove. It modernizes and simplifies the grooving process, production accurate and repeatable grooves in a safer working environment for the operator.
Product Category：
Tel：
Email：
keyword：
automatic roll grooving machine
Product Description
PRODUCT INTRODUCTION
● Roll grooving machine TWG-10A is designed for automatic production line of steel pipes.
● The electrical system, hydraulic system are controlled by computer with touch screen operation.
● Achieve 100% automatic production after assembled with the steel pipe production line.
● Output RPM of spindle is variable for different steel pipes improve the work efficiency greatly.
PRODUCT SPECIFICATIONS
● Capacity: 2“-12”( Φ 60- Φ 325) SCH40 steel pipe and SCH30 plastic lining steel pipe.
● Max. wall thickness: 10mm.
● Output RPM: 45rpm.
● G. W: 1070kgs.
● Packaging size: 180x94x180(cm).
|
Standard Equipment |
|||
|
*For SCH40 steel pipe |
|||
|
Art. No. |
Description |
N.W(kgs) |
Ref No. |
|
03.01.15.023 |
Knurl wheel Φ60 – Φ89 |
1.9 |
|
|
03.01.15.024 |
Knurl wheel Φ100 – Φ168 |
4 |
|
|
03.01.15.025 |
Knurl wheel Φ219 – Φ325 |
10 |
|
|
03.01.15.020 |
Pinch roller Φ60 – Φ89 |
6.3 |
|
|
03.01.15.021 |
Pinch roller Φ100 – Φ168 |
4.3 |
|
|
03.01.16.022 |
Pinch roller Φ219 – Φ325 |
4.1 |
|
|
*For SCH30 plastic-lining steel pipe |
|||
|
03.01.015.014 |
Knurl wheel DN50 |
1.9 |
|
|
03.01.015.013 |
Knurl wheel DN65 |
2.4 |
|
|
03.01.015.012 |
Knurl wheel DN80 |
2.8 |
|
|
03.01.015.011 |
Knurl wheel DN100 |
4 |
|
|
03.01.015.010 |
Knurl wheel DN125 |
2.9 |
|
|
03.01.015.009 |
Knurl wheel DN150 |
6.5 |
|
|
03.01.015.008 |
Knurl wheel DN200-DN300 |
10 |
|
|
03.01.015.002 |
Pinch roller DN50-DN80 |
6.3 |
|
|
03.01.015.003 |
Pinch roller DN100 |
4.3 |
|
|
03.01.015.004 |
Pinch roller DN125 |
4.1 |
|
|
03.01.015.005 |
Pinch roller DN150 |
3.4 |
|
|
03.01.015.006 |
Pinch roller DN200-DN300 |
3.3 |
|
|
Motor Parameter |
||
|
Phase |
Voltage |
Frequency |
|
Three Phase |
220/380/ 415/ 440V |
50/60 Hz |

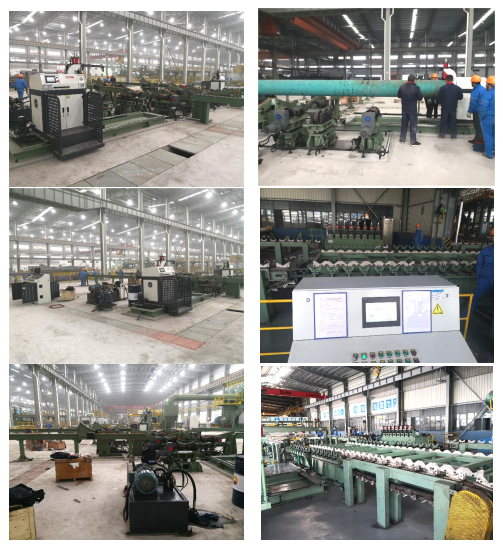

PRODUCT APPLICATION
This machine can be connected with production line for pipe prefabrication, also it can be use as an automatic grooving machine on jobsite. it depends on the working invironment.
