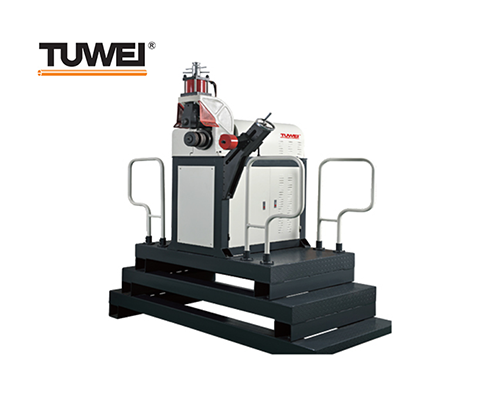

Roll Grooving Machine TWG-8A
TWG-8A hydraulic roll grooving machine can groove the max. diameter of the steel pipe up to 60inch. The entire groove process is automatic. It is equipped with automatic hydraulic system, automatic feed and automatic reset.
Product Category：
Tel：
Email：
keyword：
18" - 60" roll grooving machine
larger size pipes
automatic groover
Product Description
PRODUCT INTRODUCTION
● TWG-8A hydraulic roll grooving machine is designed for grooving 18”-60” steel pipe.
● Automatic hydraulic system, automatic feed, automatic reset through the entire process which will increase working efficiency.
● With solid and adjustable base, can adjust the height according to pipe size in order to get different center height, very suitable for grooving large diameter pipe.
PRODUCT SPECIFICATIONS
● Capacity :18“-60”( Φ 457- Φ 1524) steel pipe.
● Max. wall thickness: 12mm.
● Output RPM: 15rpm.
● G. W: 1300kgs.
● Packaging size: 240x100x273(cm).
|
Standard Equipment |
||
|
*For SCH40 steel pipe |
||
|
Art. No. |
Description |
N.W(kgs) |
|
03.01.18.003 |
knurl wheel 50”-60” |
12.7kgs |
|
13.01.18.002 |
knurl wheel 40”-48” |
12.7kgs |
|
03.01.18.001 |
knurl wheel 26”-38” |
12.7kgs |
|
03.01.18.008 |
pinch roller 50”-60” |
6.3kgs |
|
03.01.18.007 |
pinch roller 40”-48” |
6.3kgs |
|
03.01.18.006 |
pinch roller 26”-38” |
6.3kgs |
|
Motor Parameter |
||
|
Phase |
Voltage |
Frequency |
|
Three Phase |
220/380/ 415/ 440V |
50/60 Hz |
