Fitting Grooving Machine TWG-ST
Fitting grooving machine TWG-ST is designed for grooving stainless steel and carbon steel elbows and T-fittings.Vertical processing make the operation more convenient,grooves more precise.
Product Category：
Tel：
Email：
keyword：
fitting grooving machine
Product Description
PRODUCT INTRODUCTION
● Fitting grooving machine TWG-ST is designed for grooving stainless steel and carbon steel elbows and T-fittings.
● Vertical processing make the operation more convenient,grooves more precise.
● Special Knurl wheels for grooving different angled elbows which without straight ends.
● The integrative design of power system and hydraulic system.
PRODUCT SPECIFICATIONS
● Capacity: 2"-6"(∅60-∅168)SCH40 elbows and T-fitting
● Max. wall thickness: 8mm
● Output RPM: 36rpm
● G.W: 660kgs
● Packaging size: 130x115x76(cm)
|

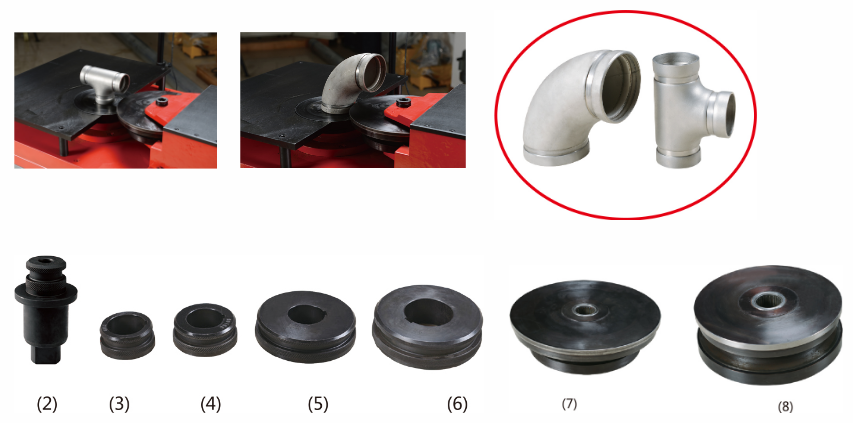

Standard Equipment |
|||
|
Art. No. |
Description |
N.W(kgs) |
Ref No. |
|
03.01.17.006 |
Knurl wheel Φ 60-Φ 76 |
1.295 |
(2) |
|
03.01.17.009 |
Knurl wheel Φ 89-Φ 102 |
0.455 |
(3) |
|
03.01.17.011 |
Knurl wheel Φ 108-Φ 114 |
0.95 |
(4) |
|
03.01.17.013 |
Knurl wheel Φ 127-Φ 141 |
1.94 |
(5) |
|
03.01.17.015 |
Pinch roller Φ 152-Φ 168 |
3.13 |
(6) |
|
03.01.17.028 |
Pinch roller Φ60- Φ114 |
13.165 |
(7) |
|
03.01.17.029 |
Pinch roller Φ140- Φ168 |
9.3 |
(8) |
|
Motor Parameter |
||
|
Phase |
Voltage |
Frequency |
|
Three Phase |
220 /380 / 415 / 440V |
50/60 Hz |
