Pipe Cutting Machine TWQ-8A


The model TWQ-8A is designed for the capacity from 8inch to 20inch steel pipe. It is equipped the power motor with single phase 1100W or three phase 750W.There is no burr and deformation during cutting because of the high-quality alloy blade.


Product Category:

keyword:

hydraulic pipe cutter

8"-20" pipe cutting machine

Product Description

  PRODUCT INTRODUCTION



Hydraulic pipe cutting machine TWQ-8A with cold extrusion process design, no sparks, dusts and metal chips appear during cutting operation.

The patented oil pump is specially designed to shorten the idle stroke and reduce the working time.

Equipped with wheels for moving the machines easily.



Pipe Cutting Machine TWQ-8A



  PRODUCT SPECIFICATIONS



Capacity: 8"-20"(Φ 219-Φ 530) SCH40 steel pipe.

Max. wall thickness: 12mm.

Output RPM: 23rpm.

G. W: 190kgs.

Packaging size: 87x82x122(cm).

Pipe Cutting Machine TWQ-8A

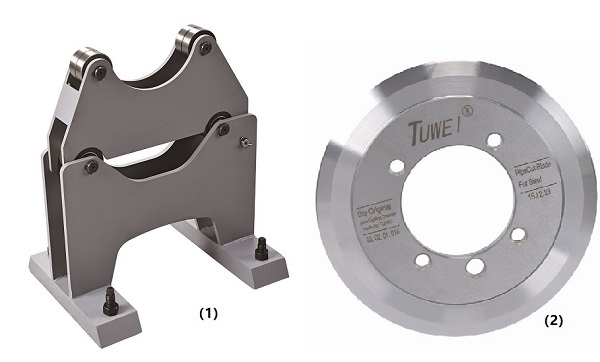

Standard Equipment

*For SCH40 steel pipe

Art. No.

Description

N.W(kgs)

Ref No.

09.02.047

Pipe stand

26.5

(1)

03.02.01.014

Alloy blade

1.3

(2)





Motor Parameter

Phase

Voltage

Frequency

Single Phase

110 / 120 / 220 / 230 / 240V

50/60 Hz

Three Phase

220 /380 / 415 / 440V

50/60 Hz



  PRODUCT DETAILS

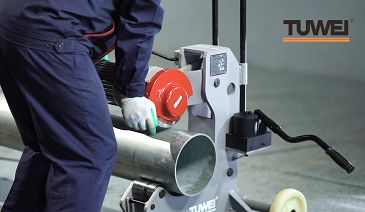

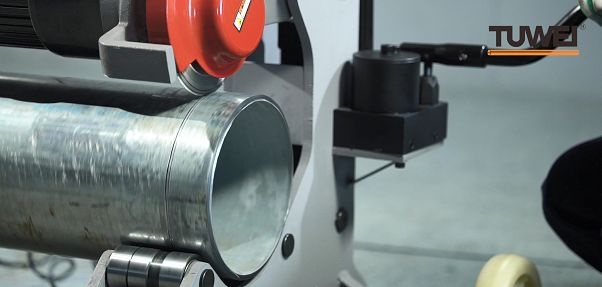

Easy to operate and efficient ,precision cut at the same time.

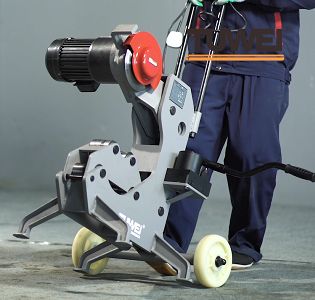

Equipped with wheels and pull rod. One person can carry it so easy.

Choose corresponding supporting roller set according to pipe size, Put the pipe on the down roller set and pipe stand, the pipe stand should be placed at a position equal to 3/4 of pipe, adjust pipe stand height to make the pipe at horizontal level.

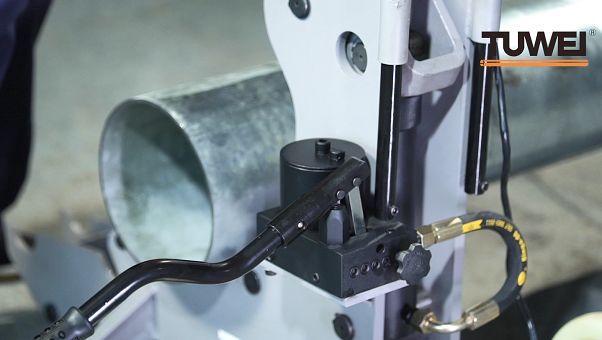

The patented oil pump is specially designed to shorten the idle stroke and reduce the working time.





  PRODUCT FEATURE AND APPLICATION

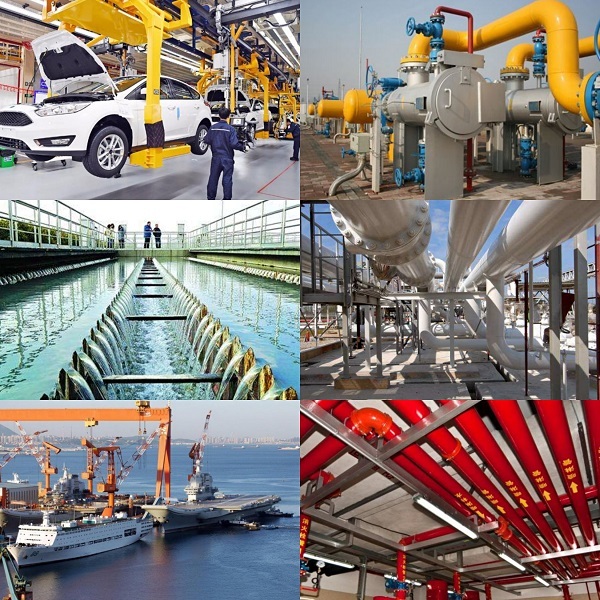

It is the best choice for cutting the steel pipe on the following industry, catering, pharmacy, Semiconductor Optoelectronics, Biology, chemical industry, oil & gas, Water Treatment, shipbuilding, Electric Power Industry, the automatic sprinkler system, etc.
