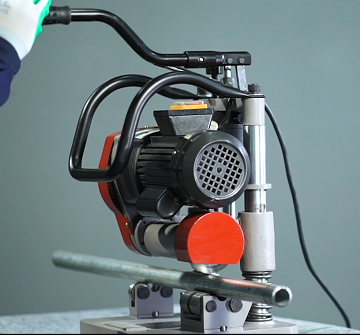

Pipe Cutting Machine TWQ-VIA
The model TWQ-VIA is a portable hydraulic electric steel pipe cutter. The designed limit screw is to accurately locate the blade. And the relief handle help to quick reposition the blade after cutting. It can effectively save working time.
Product Category：
Tel：
Email：
keyword：
3/8"-2" pipe cutting machine
hydraulic pipe cutter
Product Description
PRODUCT INTRODUCTION
● Hydraulic pipe cutting machine TWQ-VIA is designed for cutting 3/8”-2"steel pipe, very high efficiency which can cut off a steel pipe within a few seconds

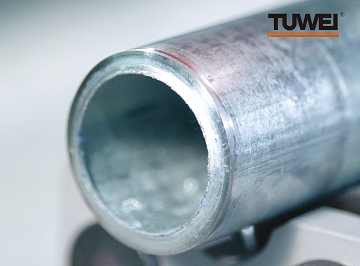

● The knurl roller is designed with a saw - blade to remove the burrs of pipe ends
PRODUCT SPECIFICATIONS
● Capacity: 3/8"-2"(Φ 16-Φ 60) SCH40 steel pipe.
● Max. wall thickness: 4mm.
● Output RPM: 105rpm.
● G. W: 55kgs.
● Packaging size: 33x37x66(cm)
|
Standard Equipment |
|||
|
*For SCH40 steel pipe |
|||
|
Art. No. |
Description |
N.W(kgs) |
Ref No. |
|
03.02.01.020 |

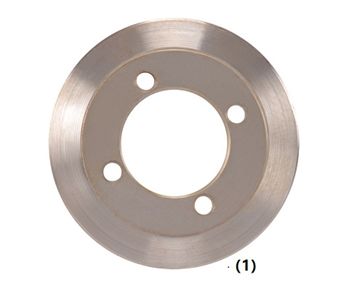

Alloy blade |
0.22 |
(1) |
|
Motor Parameter |
||
|
Phase |
Voltage |
Frequency |
|
Single Phase |
110 / 120 / 220 / 230 / 240V |
50/60 Hz |
|
Three Phase |
220 /380 / 415 / 440V |
50/60 Hz |
PRODUCT DETAILS

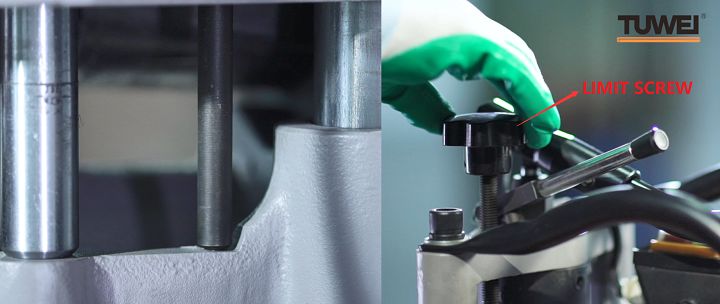

During the operation, you may vary the position of limit screw depending on the diameter of pipe so as to obtain the preferred position of stroke of link rack and blade, resulting in higher cutting performance

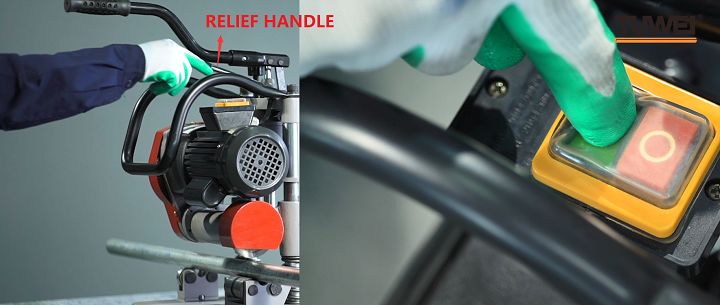

After the pipe has been cut off, hold down the relief handle to let the cutting blade returns to its original high position together with the link rack.
