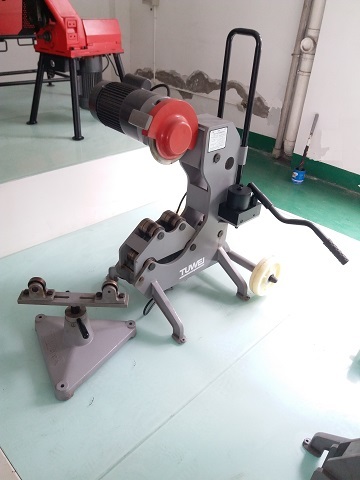

Pipe Cutting Machine TWQ-IIIA
TWQ-IIIA electric steel pipe cutter is a type of tool used to cut pipe. Besides safe cutting without sparks dusts and metal chips, the tool provides a faster, cleaner, and more convenient way of cutting pipe than using a backsaw.
Product Category：
Tel：
Email：
keyword：
2"-12" pipe cutting machine
hydraulic pipe cutter
Product Description
PRODUCT INTRODUCTION
● Hydraulic pipe cutting machine TWQ-IIIA with cold extrusion process design, no sparks, dusts and metal chips appear during cutting operation.
● The patented oil pump is specially designed to shorten the idle stroke and reduce the working time.
● Equipped with wheels for moving the machines easily.
PRODUCT SPECIFICATIONS
● Capacity: 2"-12"(Φ 60-Φ 325) SCH40 steel pipe.
● Max. wall thickness: 10mm.
● Output RPM: 23rpm.
● G. W: 143kgs.
● Packaging size: 72x69x97(cm).
|
Standard Equipment |
|||
|
*For SCH40 steel pipe |
|||
|
Art. No. |
Description |
N.W(kgs) |
Ref No. |
|

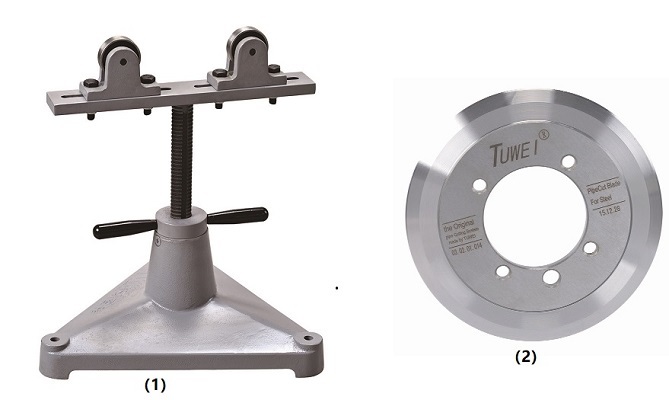

09.02.046 |
Pipe stand |
14 |
(1) |
|
03.02.01.014 |
Alloy blade |
1.3 |
(2) |
|
Motor Parameter |
||
|
Phase |
Voltage |
Frequency |
|
Single Phase |
110 / 120 / 220 / 230 / 240V |
50/60 Hz |
|
Three Phase |
220 /380 / 415 / 440V |
50/60 Hz |
PRODUCT DETAILS

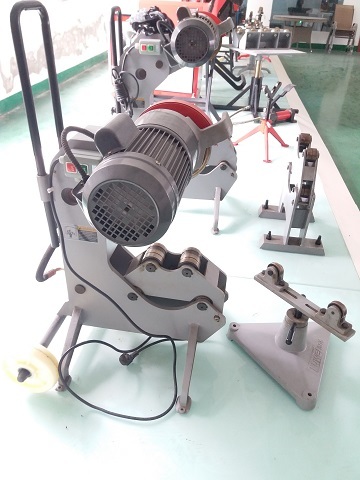

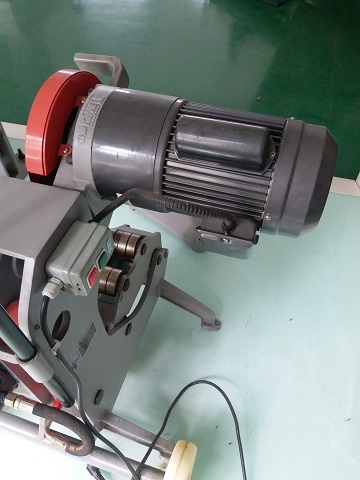

*The high-performance gear reducing motor contributing to compact size and low noise.

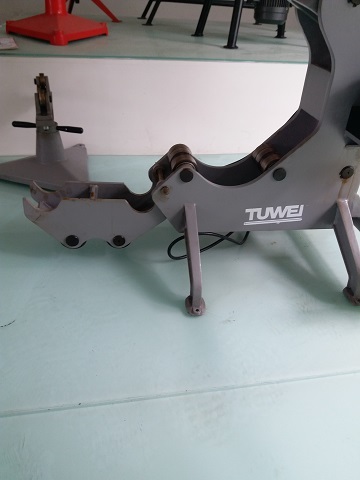

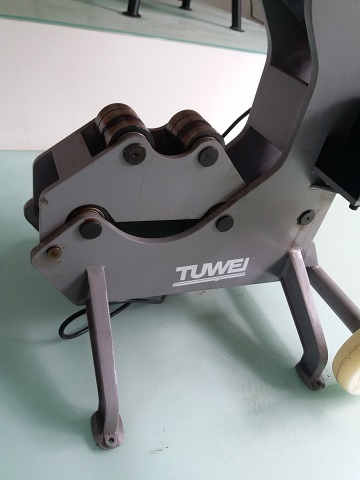

*The supporting roller holder is designed to be reversible. The holder shall be upturned to cut the steel pipe with diameters from 60mm to 200mm. The holder shall be turned outward the holder to cut the steel pipe with diameters from 200mm to 325mm.

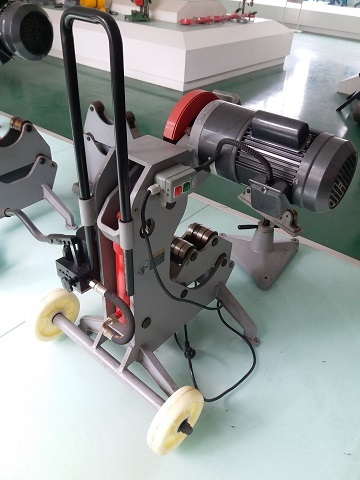

*The appearance is designed to be like a trolly. It’s convenient to move.

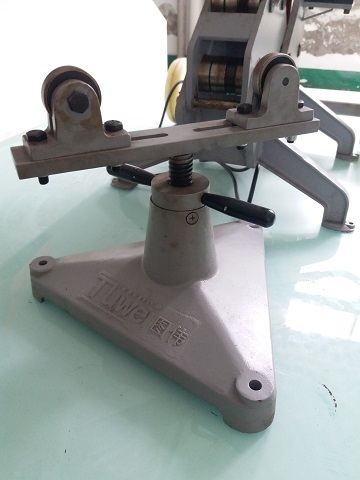

*The height of pipe stand is adjustable.
