Semi-Auto roll groover TWG-16A
This is a Semi-automatic grooving machine for 1inch to 12inch pipe. Interlock designed roll sets ensure A dimension accurately. Equipped with cart to make it more convenient to move it. Aviation plug structure, make it easy to connect other electrical parts.
Product Category：
Tel：
Email：
keyword：
automatic roll grooving machine
grooved piping connection
Semi-Auto groover
Product Description
PRODUCT INTRODUCTION
● Semi-Auto grooving machine TWG-16A roll sets with "Interlock" design, to ensure A dimension accurately
● Equipped with semi-automatic oil pump, to make it more efficient.
● Cart design, to make it easy to move
● Tool box inside, to provide enough space to place rolls
PRODUCT SPECIFICATIONS
● Capacity: 1"-12" ( Φ 33-Φ325) SCH40 steel pipe
1"-12" ( Φ 33-Φ325) SCH10S SCH5S SCH10 SCH5 thin-wall steel pipe
● Max. wall thickness: 8mm
● Output RPM: 31rpm
● G.W：255kgs
● Packaging size: 1220X1020X860 mm
|

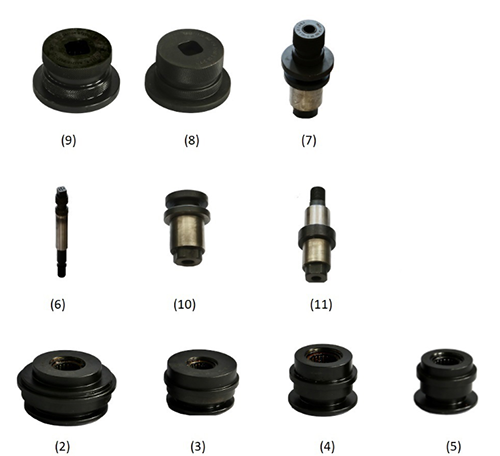

Standard Equipment |
|||
|
*For SCH40 steel pipe |
|||
|
Art. No. |
Description |
N.W(kgs) |
Ref No. |
|
04.04.010 |
Pipe stand |
20 |
(1) |
|
03.01.29.003 |
Pinch roller 1”-1.5” |
4.16 |
(2) |
|
03.01.29.004 |
Pinch roller 2”-3.5” |
3.64 |
(3) |
|
03.01.29.005 |
Pinch roller 4”-6” |
1.74 |
(4) |
|
03.01.29.006 |
Pinch roller 8”-12” |
1.69 |
(5) |
|
03.01.29.008 |
Knurl wheel 1”-1.5” |
0.39 |
(6) |
|
03.01.29.010 |
Knurl wheel 2”-3.5” |
1.97 |
(7) |
|
03.01.29.011 |
Knurl wheel 4”-6” |
2.51 |
(8) |
|
03.01.29.012 |
Knurl wheel 8”-12” |
2.56 |
(9) |
|
03.01.29.034 |
Adaptor 1”-1.5” |
1.19 |
(10) |
|
03.01.29.035 |
Adaptor 4”-12” |
1.87 |
(11) |
|
*Reminding: Please select TWG-IVZ if groove large number of 12 inch pipes |
|||
|
Motor Parameter |
||
|
Phase |
Voltage |
Frequency |
|
Single Phase |
220 /230/240V |
50/60 Hz |
