Roll Grooving Machine TWG-VA-R
TWG-VA-R hydraulic roll grooving machine is designed to groove in most types of piping including seamless steel tubing, galvanized pipes, plastic-lined pipes and stainless-steel pipes ETC, to facilitate the installation of circular pipe constructions. It’s an ideal tool for construction industry and pipeline construction sectors.
Product Category：
Tel：
Email：
keyword：
light groover
1"-6" roll grooving machine
portable roll groover
Product Description
PRODUCT INTRODUCTION
● TWG-VA-R Hydraulic roll grooving machine is designed for grooving 1”-6” steel pipe.
● Simple design of the carriage, easy to be assembled and transported.
● Equipped with integral hydraulic pump and stroke limitation device to control the depth of grooves precisely and effectively.
PRODUCT SPECIFICATIONS
● Capacity: 1“-6” (Φ 33- Φ 168) SCH40 steel pipe.
1“-6” (Φ 33- Φ 168) SCH10S SCH5S SCH10 SCH5 thin wall steel pipe.
● Max. wall thickness: 6mm.
● Output RPM: 23rpm.
● G. W: 96kgs.
● Packaging size: 95x53x65(cm).
|

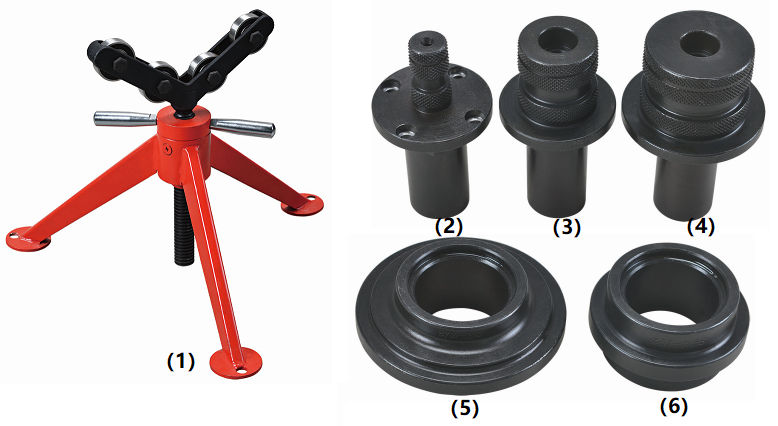

Standard Equipment |
|||
|
*For SCH40 steel pipe |
|||
|
Art. No. |
Description |
N.W(kgs) |
Ref No. |
|
09.02.040 |
Pipe stand |
6.5 |
(1) |
|
03.01.11.002 |
Knurl wheel Φ 33-Φ 48 |
0.895 |
(2) |
|
03.01.11.003 |
Knurl wheel Φ 57-Φ 89 |
1.1 |
(3) |
|
03.01.11.004 |
Knurl wheel Φ 108-Φ 168 |
1.605 |
(4) |
|
03.01.11.005 |
Pinch roller Φ 33-Φ 48 |
0.685 |
(5) |
|
03.01.11.006 |
Pinch roller Φ 57-Φ 168 |
0.46 |
(6) |
|
*Reminding: Please select TWG-9A if groove large number of 6 inch pipes |
|||
|
Optional Equipment |
||
|
*For SCH10S SCH5S SCH10 SCH5 thin wall steel pipe |
||
|
Art. No. |
Description |
N.W(kgs) |
|
09.03.042 |
Thin wall knurl wheel Φ 33-Φ 48 |
1.65 |
|
09.03.043 |
Thin wall knurl wheel Φ 57-Φ 89 |
1.115 |
|
09.03.044 |
Thin wall knurl wheel Φ 108-Φ 168 |
1.995 |
|
Motor Parameter |
||
|
Phase |
Voltage |
Frequency |
|
Single phase |
110/120/220/230/240V |
50/60Hz |
|
Three Phase |
220/380/ 415/ 440V |
50/60 Hz |
|
*Before turn on the machine pls make sure ground wire is grounding. |
||
