Roll Grooving Machine TWG-IVZ
TWG-IVZ automatic hydraulic roll grooving machine is equipped with control panel, is simple and easy to operate it. The automatic hydraulic control system and auto-feeding to improve the efficiency. It’s a good choice for the big diameter steel pipe to be grooved.
Product Category：
Tel：
Email：
keyword：
roll grooving machine
semi-automatic
automatic groover
Product Description

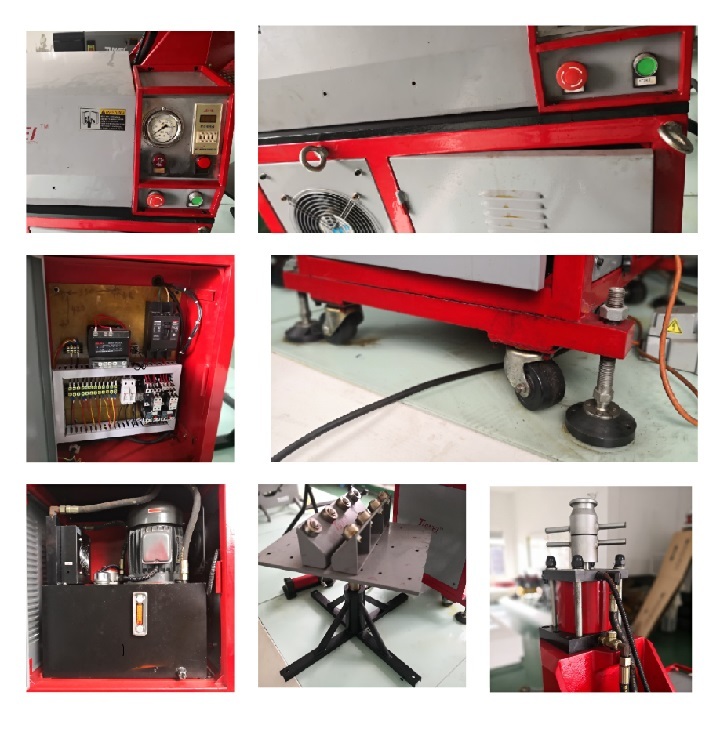

PRODUCT INTRODUCTION
● TWG-IVZ automatic hydraulic roll grooving machine is designed for grooving 8”-24”steel pipe.
● Equipped with Automatic hydraulic control system and auto-feeding to improve
the efficiency.
● Semi-automatic process, more precise grooves and more efficient.
● Designed auto delay function to make every single groove depth very precise.
● Equipped with solid wheels at the bottom of the machine, it is easy to transport in different building sites.
PRODUCT SPECIFICATIONS
● Capacity: 8"-24"(Φ 219-Φ 630)SCH40 steel pipe.
● Max. wall thickness: 13mm.
● Output RPM: 15rpm.
● G. W: 490kgs.
● Packaging size: 107x85x168(cm).
98x98x63(cm).
|

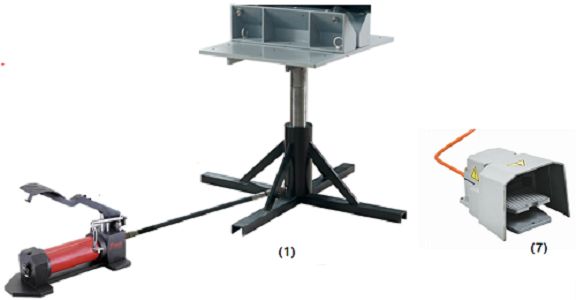

Standard Equipment |
|||
|
*For SCH40 steel pipe |
|||
|
Art. No. |
Description |
N.W(kgs) |
Ref No. |
|
03.01.06.020 |
Pipe stand |
140 |
(1) |
|

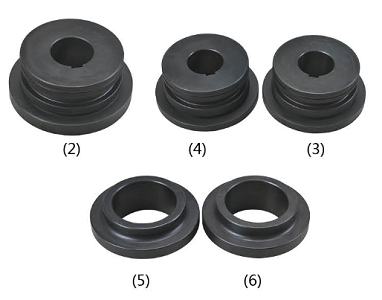

03.01.06.020 |
Knurl wheel Φ 219-Φ 325 |
9 |
(2) |
|
03.01.06.021 |
Knurl wheel Φ 377-Φ 426 |
8.675 |
(3) |
|
03.01.06.022 |
Knurl wheel Φ 480-Φ 630 |
8.515 |
(4) |
|
03.01.06.015 |
Pinch roller Φ 219-Φ 530 |
1.29 |
(5) |
|
03.01.06.016 |
Pinch roller Φ 630 |
1.32 |
(6) |
|
09.02.032 |
Foot switch |
1.2 |
(7) |
|
Motor Parameter |
||
|
Phase |
Voltage |
Frequency |
|
Three Phase |
220 /380 / 415 / 440V |
50/60 Hz |
PRODUCT TRANSPORT

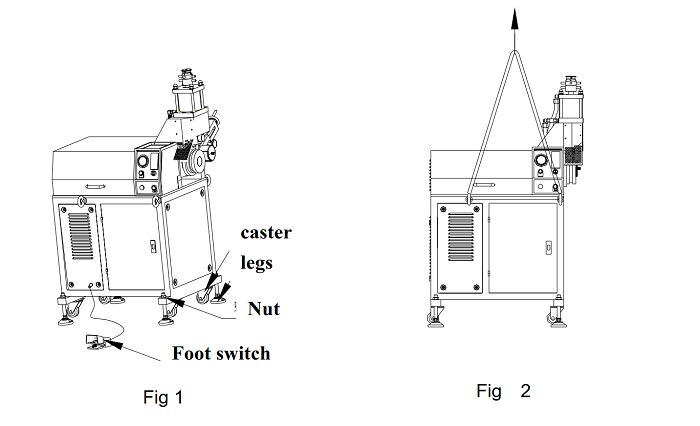

The four feet of the machine touch the ground and the four universal casters keep off the ground upon unpacking. (Refer to Fig. 1.). The hoisting status is as shown in fig. 2. In case a small moving is intended, loosen the four nuts as shown in Fig. 1,rotate the screws on the four legs to move the legs upward and enable the casters touch the ground to facilitate the moving of machine.
